200 - 20,000L
CAPACITY
HORIZONTAL
VERTICAL
QUALITY
TESTED
NOT RECOMMENDED for salty water or water with high calcium & corrosive mineral contents. Epoxy Paint Lining (Non-Toxic Lining) is advisable for Deep Well Water.
SuperTank International Co. reserves the right to change its specifications without prior notice. All specifications stated above are on an approximate basis only.
SuperTank Storage Tanks are manufactured using high quality corrosion resistant Stainless Steel Grade 304 BA Finish (also known as mirror finish) materials that are deemed safe to use for potable water storage.
NOT RECOMMENDED for salty water or water with high calcium & corrosive mineral contents. Epoxy Paint Lining (Non-Toxic Lining) is advisable for Deep Well Water.
SuperTank International Co. reserves the right to change its specifications without prior notice. All specifications stated above are on an approximate basis only.

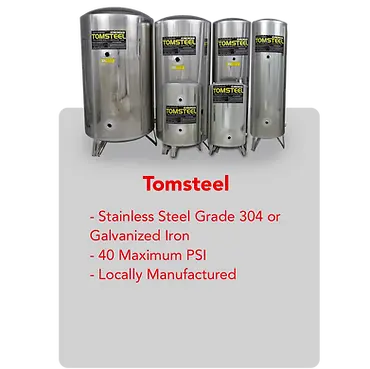

Being the pioneer in the manufacturing of local pressure tanks here in the Philippines, under the TOMSTEEL brand, we have maintained our quality over time by using standard materials, thickness and specifications for the safety of the buying public.
The recommended pressure setting is 20 / 40 (Cut In/Cut Off) PSI (pounds per square inch).
To be economical, one needs the advice of a professional installer.
Other essential accessories such as pressure gauges, switches, and magnetic motor starters are also available upon request.
ALL AVAILABLE IN:
Stainless Steel 304
-
Gauge 16
-
Gauge 14
-
Gauge 12
Galvanized Iron
-
Gauge 16
-
Gauge 14
-
Gauge 12
Mild Steel Plate
-
Gauge 16
-
Gauge 14
-
Gauge 12 up to 1/4"
* Other thickness requirements are available upon request.
NOTE:
Models with base are only available in Stainless Steel 304 gauge 18 and GI gauge 16 only.
NOT RECOMMENDED for salty water or water with high calcium & corrosive mineral contents. Epoxy Paint Lining (Non-Toxic Lining) is advisable for Deep Well Water.
SuperTank International Co. reserves the right to change its specifications without prior notice. All specifications stated above are on an approximate basis only.
Blu Magic, a brand coined for the Philippine market, is a Membrane Tank (a pressure tank with replaceable membrane), that is three times more efficient than the conventional pressure tanks that Filipinos have grown accustomed to. (please see the comparative table below).
BLU MAGIC
MEMBRANE TANK
CONVENTIONAL
PRESSURE TANK
The main purpose of the presence of a pressure tank is to automate the water system while giving a steady water pressure all throughout the day, making it economical and an essential part of a water pressure system.
Membrane tanks have pre-charged air pressure stored between the membrane and the internal metal surface of the tank. When the pressure increases, the air cushion compresses, letting the water fill in the tank, and then keeping it under pressure to be reused when the user requests it. Membrane tanks can have a maximum working pressure of 125 PSI, although recommended settings here in the Philippines stand around 20/40 PSI
A water pump’s main purpose is to ensure that supply of water is uninterrupted by constantly moving it from one end to another. Water pumps are no longer limited to aid in industrial or commercial sites as it helps fix the issue of low water pressure, making it a valid appliance in the household.
In looking for the correct type of water pump for your requirement, we urge you to take into consideration the location of the system, the distance that will be covered, and the required capacity of the operation. These factors, among others, will help you determine the most efficient and suitable water pumping system for your needs.
The JET series self-priming pumps combine the functional benefits of centrifugal pumps and the practical benefits of self-priming pumps. The Venturi system the pumps are fitted with guarantees optimum hydraulic efficiency and considerable pressure capacity.
SELF PRIMING
HIGH SUCTION CAPACITY
STRONG AND RESISTANT
SELF-PRIMING JET BOOSTER PUMP
Pump Body: Cast Iron
Impeller: Technopolymer
Motor: Closed, externally ventilated
Insulation class: F
Protection class: IP44
Duty: Continuously rated
Mechanical Seal: Graphite Mechanical Seal w/ Ceramic Counter-face
Shaft: Stainless steel
Thermal Protector
Made in Italy
JET SERIES
MODEL
HP
PIPE DIAMETER
JET 600B
JET 800B
3/4
1
1" x 1"
1" x 1"
TEMCO Manufacturer is located in Mindong Area-Fuan City-CHINA MOTOR TOWN, which is famous for it's electric motor & water pump. TEMCO has more than 10 year's experience in oversea market of electric motor, pump & generator. Temco products have passed CCC, SACO, CE TUV certification, some of them got GS certification. TEMCO carries out ISO9001:2000 and ISO14001:2004. TEMCO Quality, techniques, and appearance got European and American standards.
PERIPHERAL PUMP
QB SERIES
MODEL
QB 60
HP
1/2
PIPE DIAMETER
1" x 1"
CAST IRON JET BOOSTER PUMP
JSP SERIES
MODEL
JSP 255
JSP 355
JSP 455
JSP 555
JSP 666
HP
1/2
3/4
1
1.5
2
PIPE DIAMETER
1" x 1"
1" x 1"
1" x 1"
1 1/4" x 1 1/4"
1 1/4" x 1 1/4"

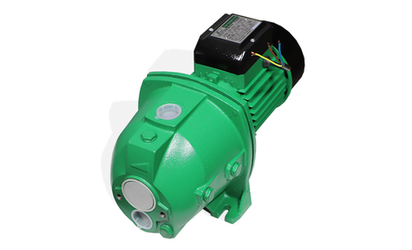

DEEP WELL BOOSTER PUMP
JDW SERIES
MODEL
JDW 505
HP
1
CAST IRON CENTRIFUGAL PUMP
DTM SERIES
MODEL
DTM 16
DTM 20
HP
PIPE DIAMETER
1.5
2
2" x 2"
2" x 2"
CAB
CAB SERIES
MODEL
CAB 505
CAB 707
HP
1.5
2
ITT Goulds Pumps is among the most widely recognized and respected brands in the global pump industry, serving customers in the oil and gas, mining, power generation, chemical, pulp and paper, and general industrial markets. As the only manufacturer to make digital monitoring standard on every process pump, ITT Goulds Pumps continues to lead the industry in both mechanical pump design and the adoption of smart technologies.

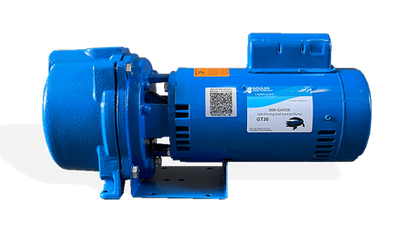

IRRIGATOR CENTRIFUGAL PUMP
Pump Body: Cast Iron
Impeller: F.D.A. complaint, glass filled Noryl.
Motor: NEMA standard open drip proof
Duty: Continuously rated
Mechanical Seal: Carbon/Ceramic
Shaft: Stainless Steel
Pipe Diameter: 1 1/2" x 1 1/2"
GT SERIES
MODEL
GT10
GT15
GT20
GT203
GT30
GT303
HP
1
1.5
2
2
3
3
SHALLOW WELL BOOSTER PUMPS
Pump Body: Cast Iron
Impeller: F.D.A. complaint, glass filled Noryl.
Motor: NEMA standard
Duty: Continuously rated
Mechanical Seal: Noryl and stainless wear ring diffuser with integral shallow well jet
Shaft: Stainless Steel
Pipe Diameter: 1 1/4" x 1"
JS+ SERIES
MODEL
J5S
J7S
J10S
J15S
HP
1/2
3/4
1
1.5
DEEP WELL BOOSTER PUMPS
SJ SERIES
MODEL
SJ10
SJ15
SJ20
HP
1
1.5
2
